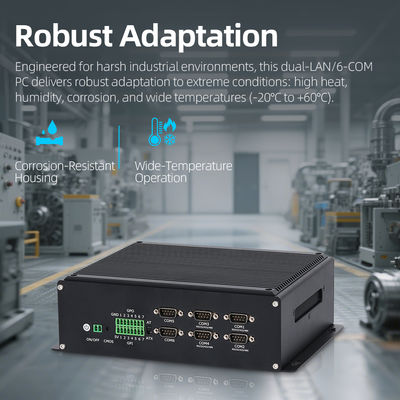

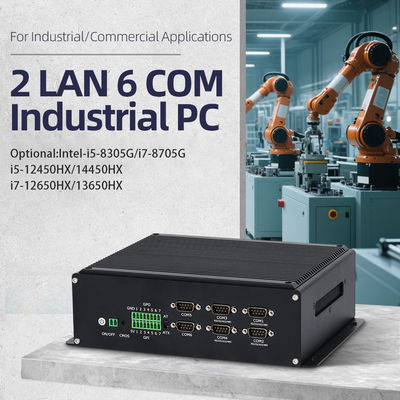

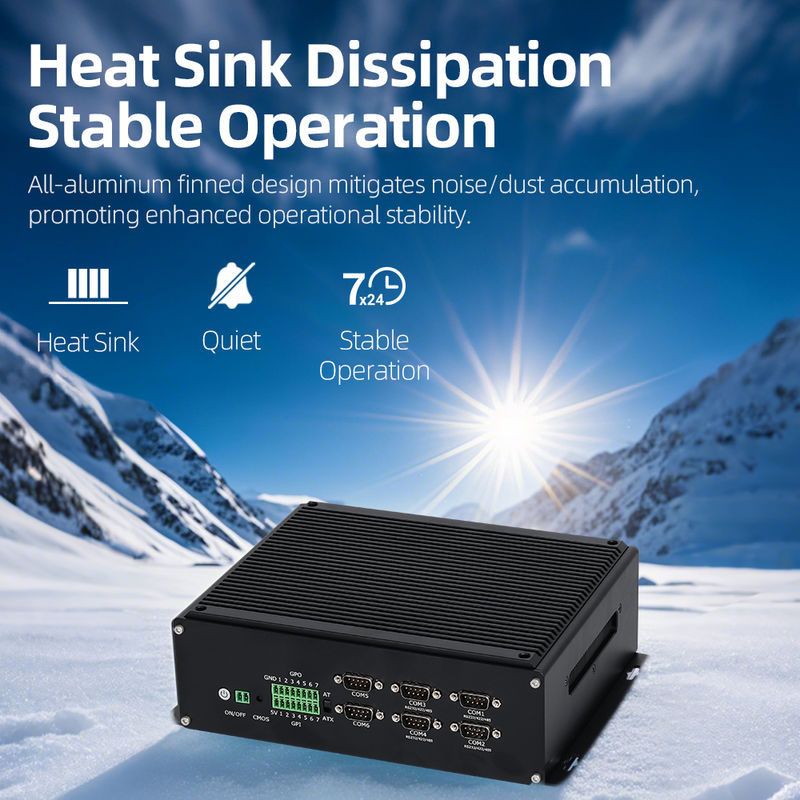

Intel I7 13650HX Processor with Dual Network Six COM Four HDMI Industrial PC

Intel I7 13650HX Dual Network Six COM Four HDMI Industrial PC Description:

This industrial PC is powered by Intel 13650HX with AMD Vega discrete graphics (4GB VRAM) and supports up to 32GB DDR4 memory. It includes 2 RJ45 Intel i226V network ports (4 optional), 4 USB 3.0, 4 USB 2.0, 6 DB9 COM (4 for RS485/RS422), 4 HDMI 2.0, and 14 GPIO. Storage options consist of 2 M.2 NVMe 2280 (1 with SATA support) + 1 HDD/SSD. Expansion is available through M.2 slots (WIFI/3G/4G/5G) and IO. The system is compatible with Windows 10/11, Linux, and supports watchdog and diskless boot. Constructed from aluminum, it operates in temperatures from -30°C to +70°C, accepts 9-36V input, and offers desktop or wall-mount configurations.

Intel I7 13650HX Dual Network Six COM Four HDMI Industrial PC Specification:

Intel I7 13650HX Dual Network Six COM Four HDMI Industrial PC Precessor:

Equipped with an Intel Core i7-13650HX processor, this device supports up to 64GB DDR5 memory (via 2×DDR5 SODIMM slots). It features 2×RJ45 Intel i226V network ports (4 optional), rich I/O (2×M.2 NVME 2280 slots, 1 supporting SATA, plus 1×HDD/SSD slot). Compatible with Windows 10, Windows 11, Linux, it has an aluminum build, supports 9-36V input, and operates in -20℃ to +60℃ (storage: -30℃ to +70℃). Desktop or wall-mount installation is available.

Intel I7 13650HX Dual Network Six COM Four HDMI Industrial PC Application:

This industrial PC, powered by the Intel Core i7-13650HX processor, excels in various scenarios with its 4-display and dual-network capabilities. It meets the high-performance needs of intelligent manufacturing for precision control, supports data-driven operations in financial institutions, ensures stable monitoring in the power industry, enables efficient data processing in petroleum and petrochemicals, and aids real-time management in industrial automation and transportation systems.

Intel I7 13650HX Dual Network Six COM Four HDMI Industrial PC Interfaces:

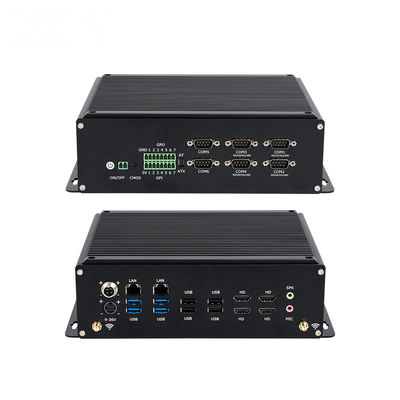

The Intel I7-13650HX industrial PC offers a wide range of interfaces. It includes power-related switches (Power Switch, Clear CMOS Switch), GPIO/AT/ATX ports, 6 COM ports, an aviation power interface, 2.5G LAN, USB 3.0/2.0 ports, 4 HDMI outputs, MIC, and SPK, fulfilling various industrial connection requirements.
